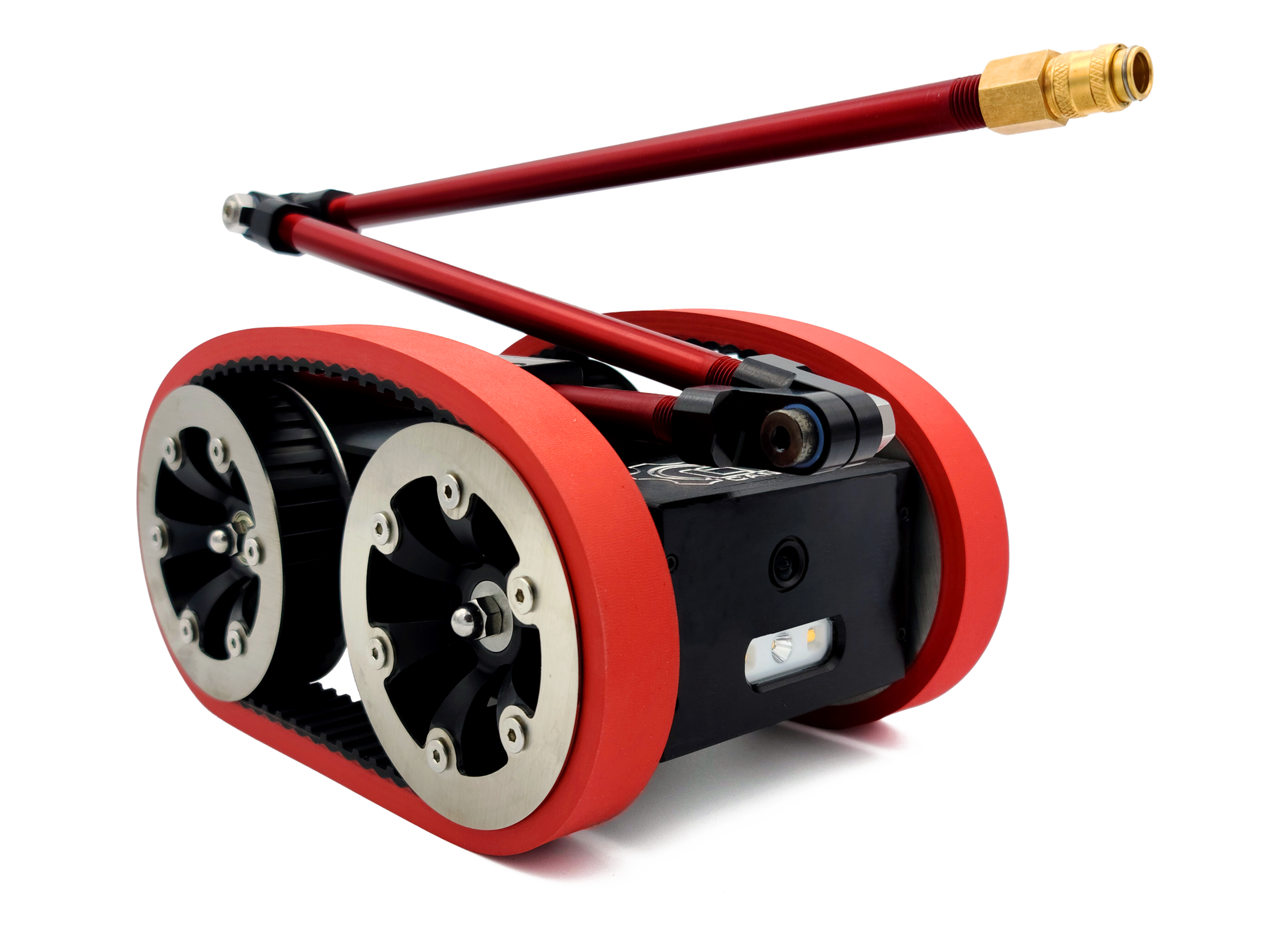

Airbot One™ Robot
Airbot One™ is the ultimate robot specialized for ventilation duct cleaning needs. With its belt system propelled by 2 high-performance motors, it is able to move quickly and efficiently in ducts without any worries. Its design allows it to access all types of ducts of 7“ and more in order to inspect, clean, and even apply sealants.
This versatile robot is the essential tool for cleaning ventilation systems in commercial, industrial, and institutional environments. Compatible with several accessories that will allow you to face any situation.
Key features:
Made of durable and lightweight materials
Compact design with carrying case and integrated control panel
Intuitive functions and controls
FusionFlex™ cable provides air and electric connections 100ft away
Ready for powerful tools upgrades
Quick-connect connections
High quality motors for better performance and reliability
Full HD - 1080P front and rear cameras
Powerful LED lights for better vision
Includes:
Hard carrying case
FusionFlex™ cable - 100 feet
Control panel + laptop
Manual articulated arm
Whips and tools
100% Made in Canada
SKU: AIRBOT-ONE
Technical Specifications
Download the specs sheet here.
ROBOT
Length
270mm (10.63’’)
Height
140mm (5.51’’)
Width
180mm (7.09’’)
Weight
5.65 Kg (12,46 lbs)
Speed
0.266m/s (16m/min)
Torque
12 NM (106.21lbs»)
Operating temperature
-10 a 65° C
Mobile load
193 Kg (425 lbs)
Radial load
68 Kg (152.12 lbs)
Max incline
40°
Ducts compatibility
Round / Flat (> 7’’)
MOTORS x2
Max output power
28.6 W
Nominal voltage
24 V
Nominal speed
8100 rpm
Operating temp.
-30 to 85° C
Nominal current
1.08A
CASE & CONTROLS
Power supply
110/220V AC 50/60 Hz
Case total weight
7.8 Kg (17.2lbs)
Length
570mm (22.5")
Height
355mm (14")
Width
240 mm (9.5")
Nominal power cons.
36 W
Max. power cons.
72 W
PSI (operation)
125-175 psi
PSI (max)
250 psi
Cable length
30.5m (100’’)
VISION
Cameras
2 (front & rear)
Resolution
1920 x 1080 (2MP)
Frame rates
30 fps
Viewing angle
Wide 90°
Front lights
475 lumens
Rear lights
300 * 2 lumens
Laptop for recording
Included
Record & view software
Included
Comments on records
YES
